How To Install Exchange 2016 (Greenfield Site) – Part 2

KB ID 0001302 Dtd 17/04/17

Problem

Back in Part-One, we looked at all the things to consider before you start to install Exchange 2016. Now we will start installing software, and getting to a point where we can configure Exchange 2016 and carry out some post deployment.

Solution

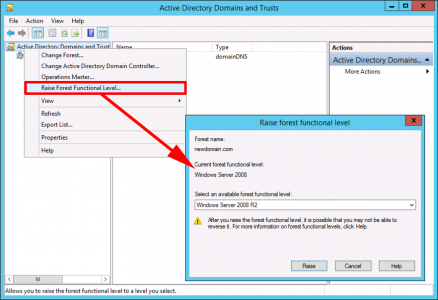

Your forest functional level needs to be at 'Windows Server 2008' before you can install Exchange 2016.

Forest Functional Level

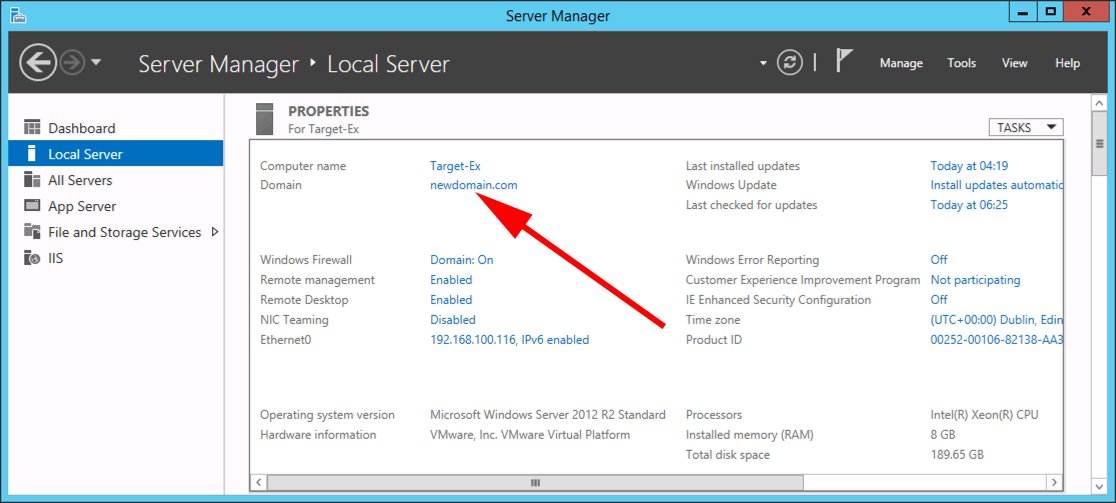

The server you intend to deploy Exchange on, needs to be a domain member server.

Server Domain Membership

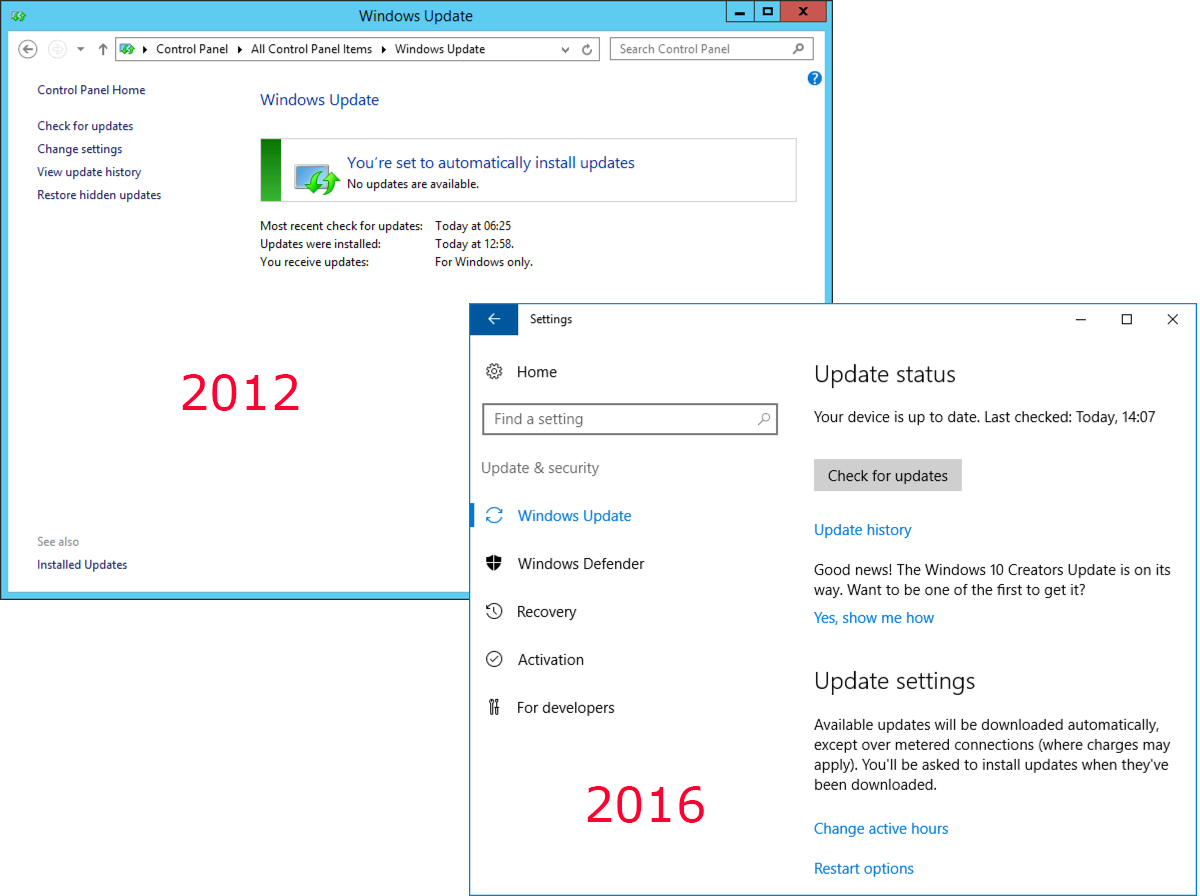

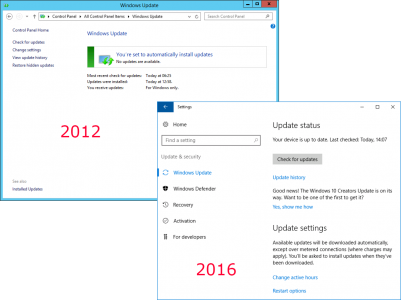

To save you any hassle, make sure your intended server is fully updated.

Windows Server Fully Updated

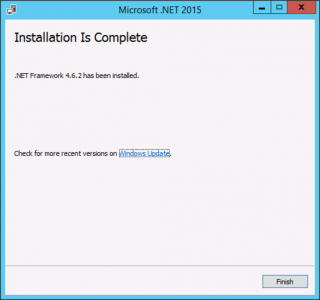

The server needs .Net installing, the versions, (at time of writing ) are;

  • Exchange 2016 CU3 Req.Net 4.5.2 (or greater).
  • Exchange 2016 CU5 Req.Net 4.6.2 (or greater).

.net versions exchange 2016

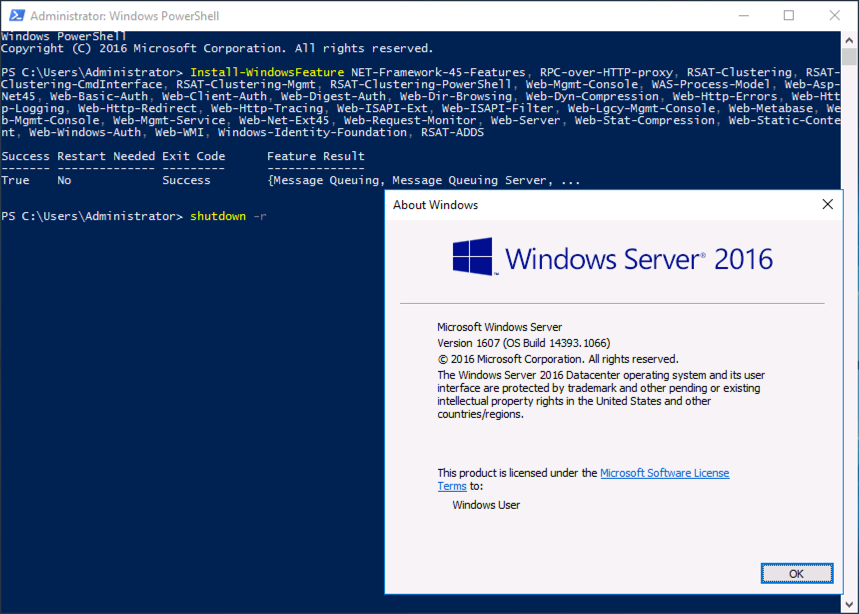

Exchange 2016 Roles/Features Windows Server 2016

As with previous versions of Exchange there's a long list of roles and features that needed to be added, open an administrative PowerShell Window and run the following;

Install-WindowsFeature NET-Framework-45-Features, RPC-over-HTTP-proxy, RSAT-Clustering, RSAT-Clustering-CmdInterface, RSAT-Clustering-Mgmt, RSAT-Clustering-PowerShell, Web-Mgmt-Console, WAS-Process-Model, Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth, Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging, Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service, Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression, Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation, RSAT-ADDS

Server 2016 Exchange 2016 Requirements

Exchange 2016 Roles/Features Windows Server 2012 (2012 R2)

As with previous versions of Exchange there's a long list of roles and features that needed to be added, open an administrative PowerShell Window and run the following;

Install-WindowsFeature AS-HTTP-Activation, Desktop-Experience, NET-Framework-45-Features, RPC-over-HTTP-proxy, RSAT-Clustering, RSAT-Clustering-CmdInterface, RSAT-Clustering-Mgmt, RSAT-Clustering-PowerShell, Web-Mgmt-Console, WAS-Process-Model, Web-Asp-Net45, Web-Basic-Auth, Web-Client-Auth, Web-Digest-Auth, Web-Dir-Browsing, Web-Dyn-Compression, Web-Http-Errors, Web-Http-Logging, Web-Http-Redirect, Web-Http-Tracing, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Lgcy-Mgmt-Console, Web-Metabase, Web-Mgmt-Console, Web-Mgmt-Service, Web-Net-Ext45, Web-Request-Monitor, Web-Server, Web-Stat-Compression, Web-Static-Content, Web-Windows-Auth, Web-WMI, Windows-Identity-Foundation, RSAT-ADDS

Windows Roles and Features 2012

You will also need to install the 'Unified Communications Managed API 4.0 Runtime' software. Note: Not required if you are only installing the management tools.

UC Runtime API

Windows Server 2016 Only: You should already have update KB3206632 as we updated the server above, if you skipped that step you need to pre install that update, so update now!

Installing Exchange 2016

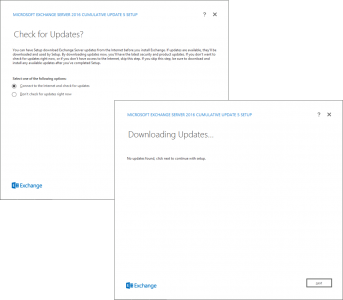

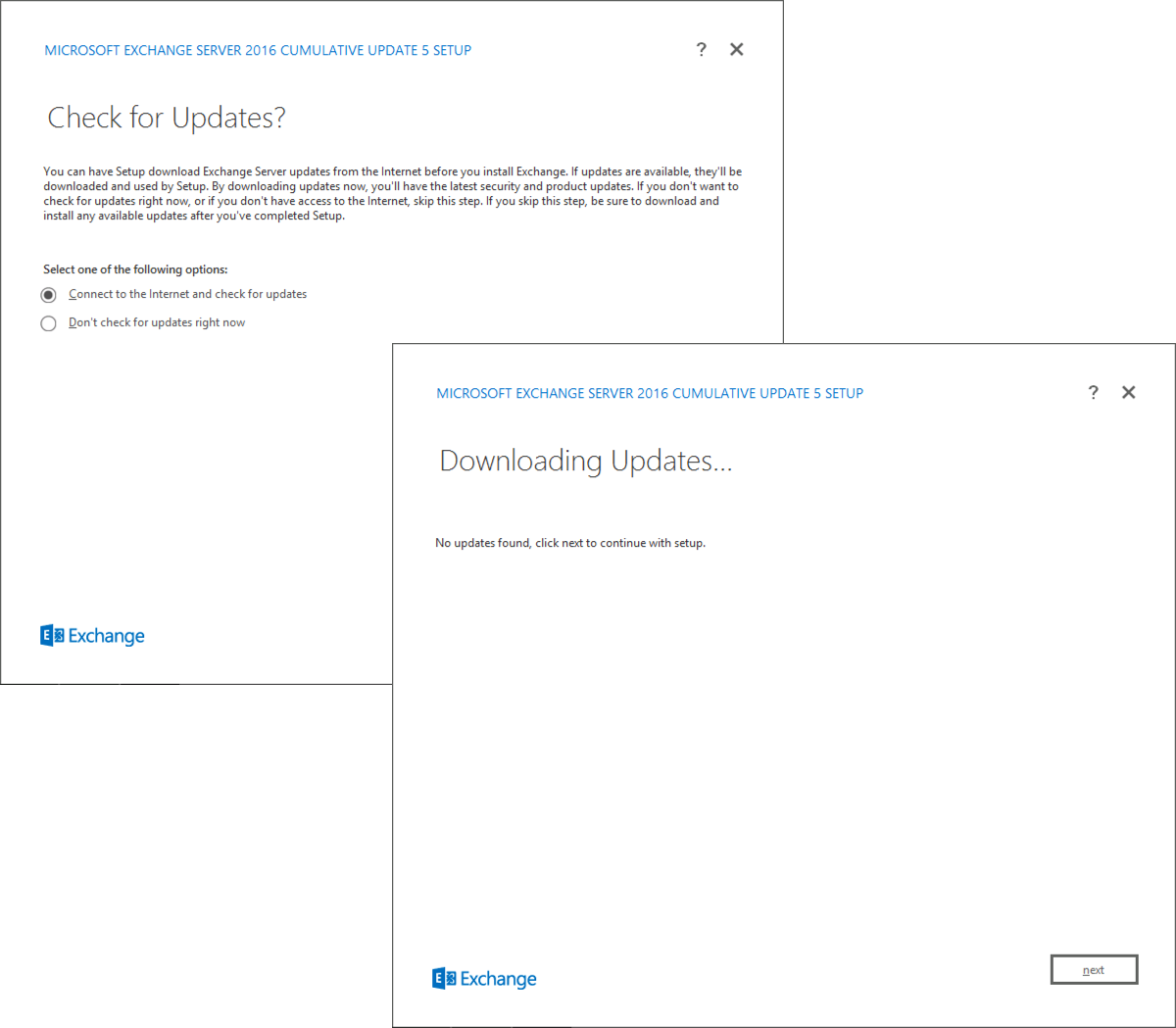

If you downloaded the Exchange media as a .iso file mount it and let it autoplay. If you extracted the software run Setup.exe. The first thing it will do is look to see if it has any updates.

Exchange Update Check

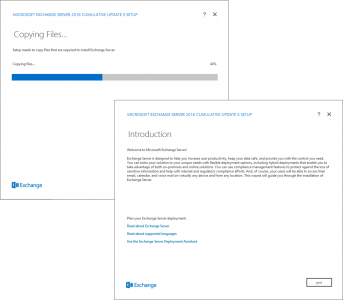

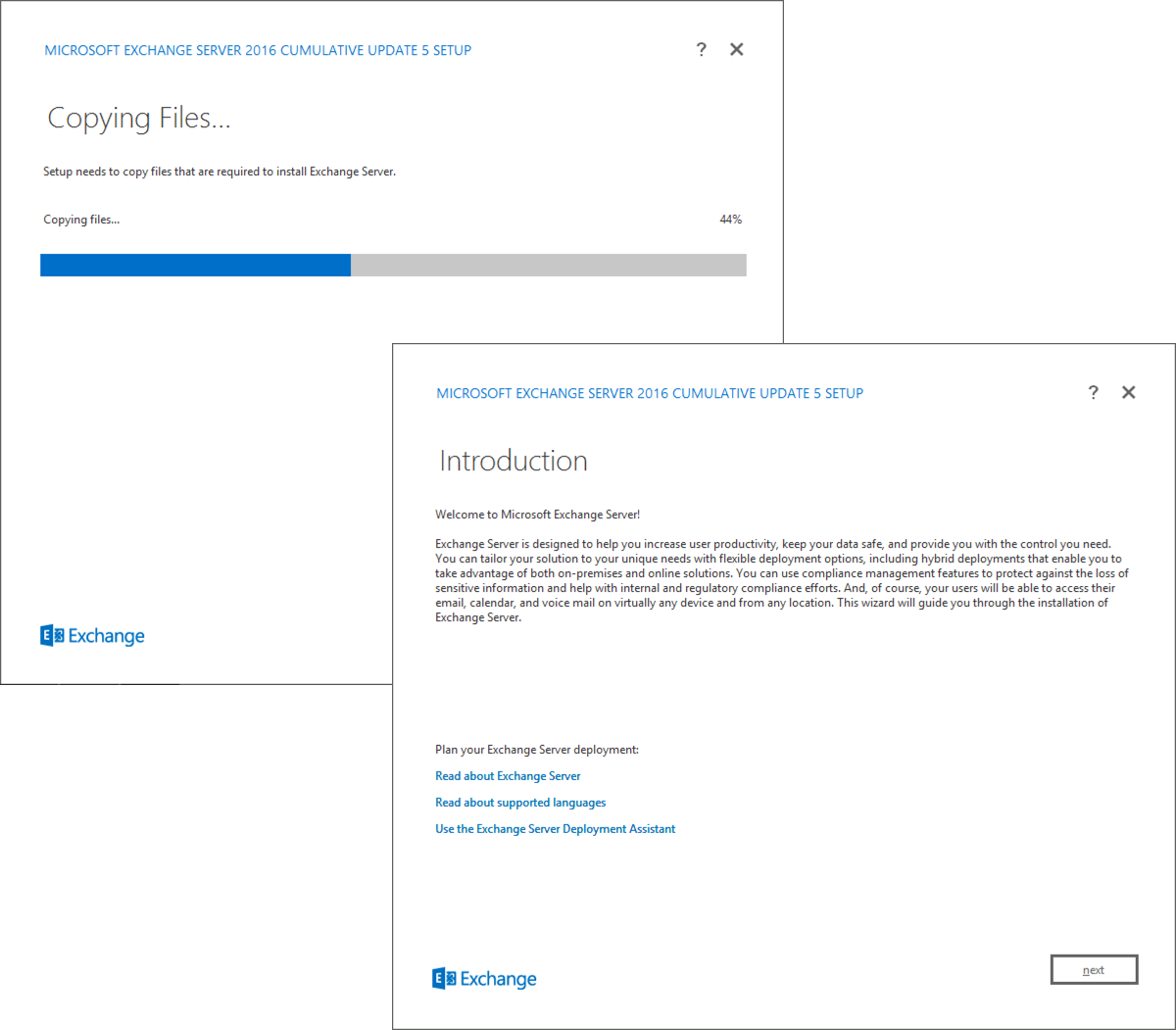

Files will get copied over > Next > You will be presented with an introduction > Next.

Exchange 2016 Setup and Deployment

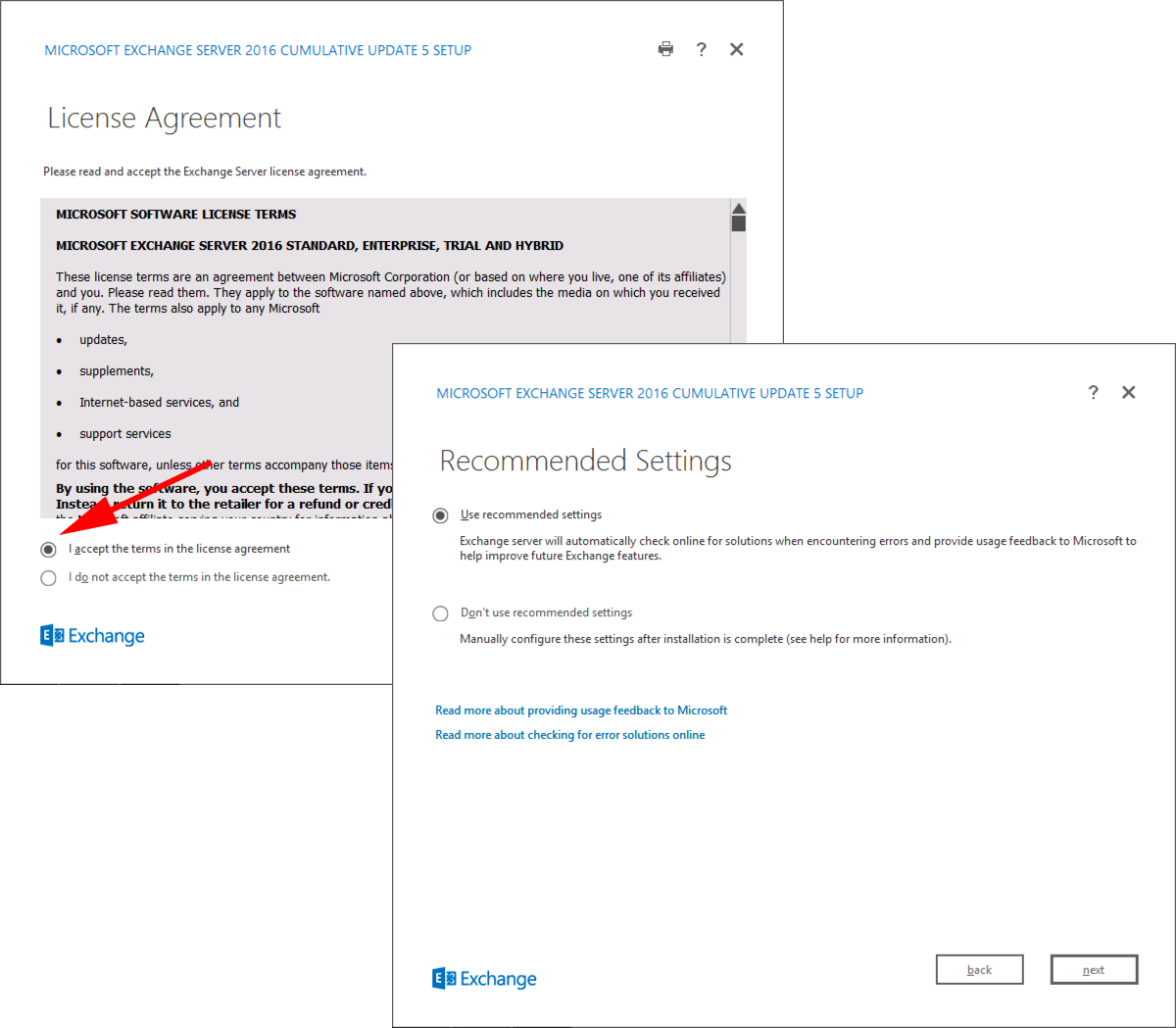

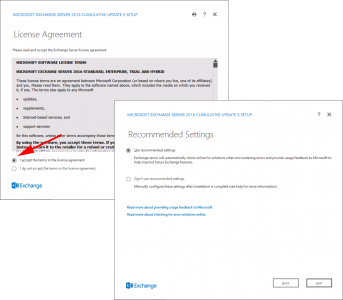

Accept the EULA > Next > I usually just accept the recommended settings > Next.

Exchange 2016 Accept EULA

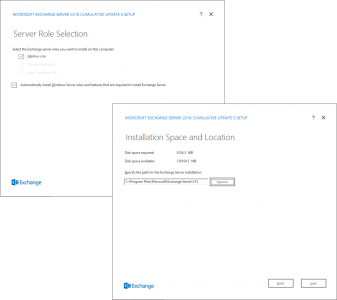

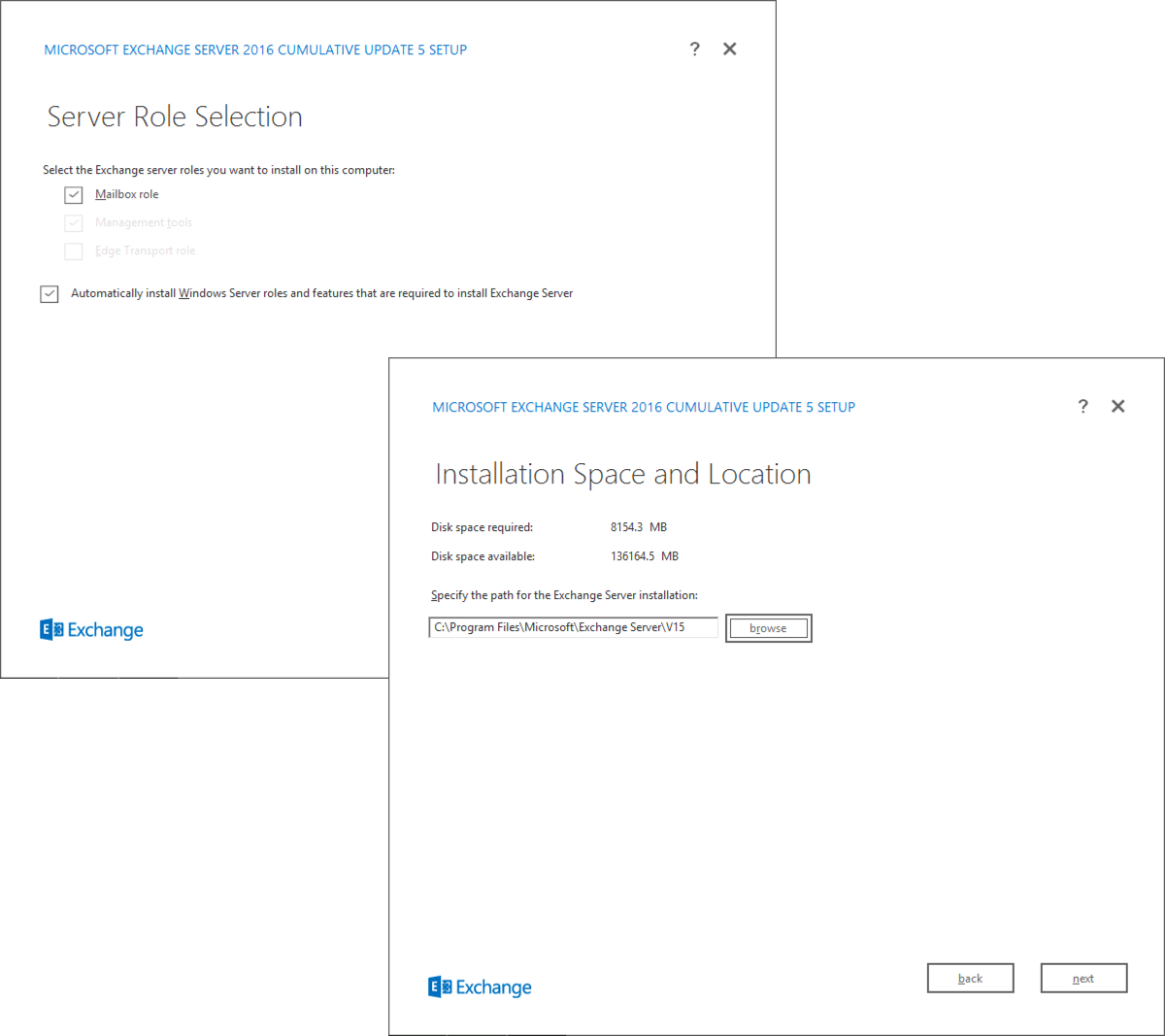

Select either Mailbox server, Edge Transport server, or just the management tools > Next > Select the location that you want to install Exchange to > Next.

Note: Although in the example below, I'm using the 'C:' drive, for production I would always install Exchange onto a separate volume to the OS.

Exchange 2016 Role Selection

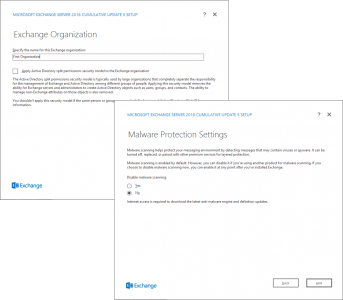

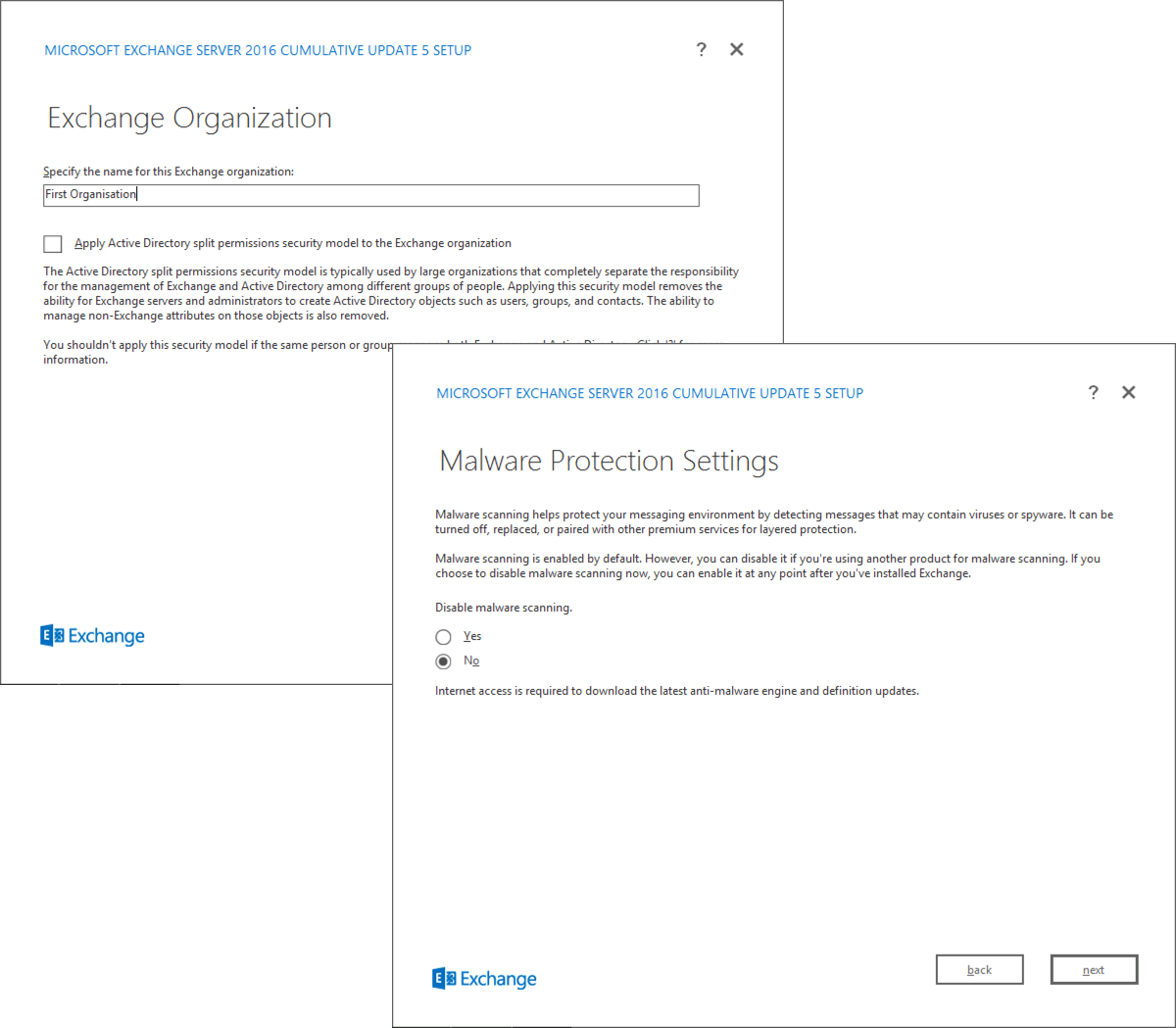

I usually accept the default organisation name of 'First Organisation' you can change it if you with, but choose wisely because you can't change it once installed > Next > Unless you have a specific requirement to disable the built in malware protection, leave it enabled > Next.

Exchange 2016 Organization Name

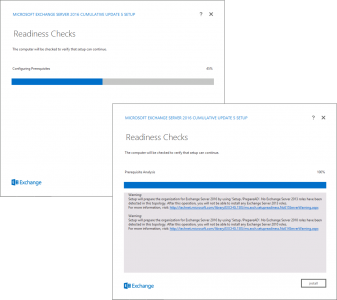

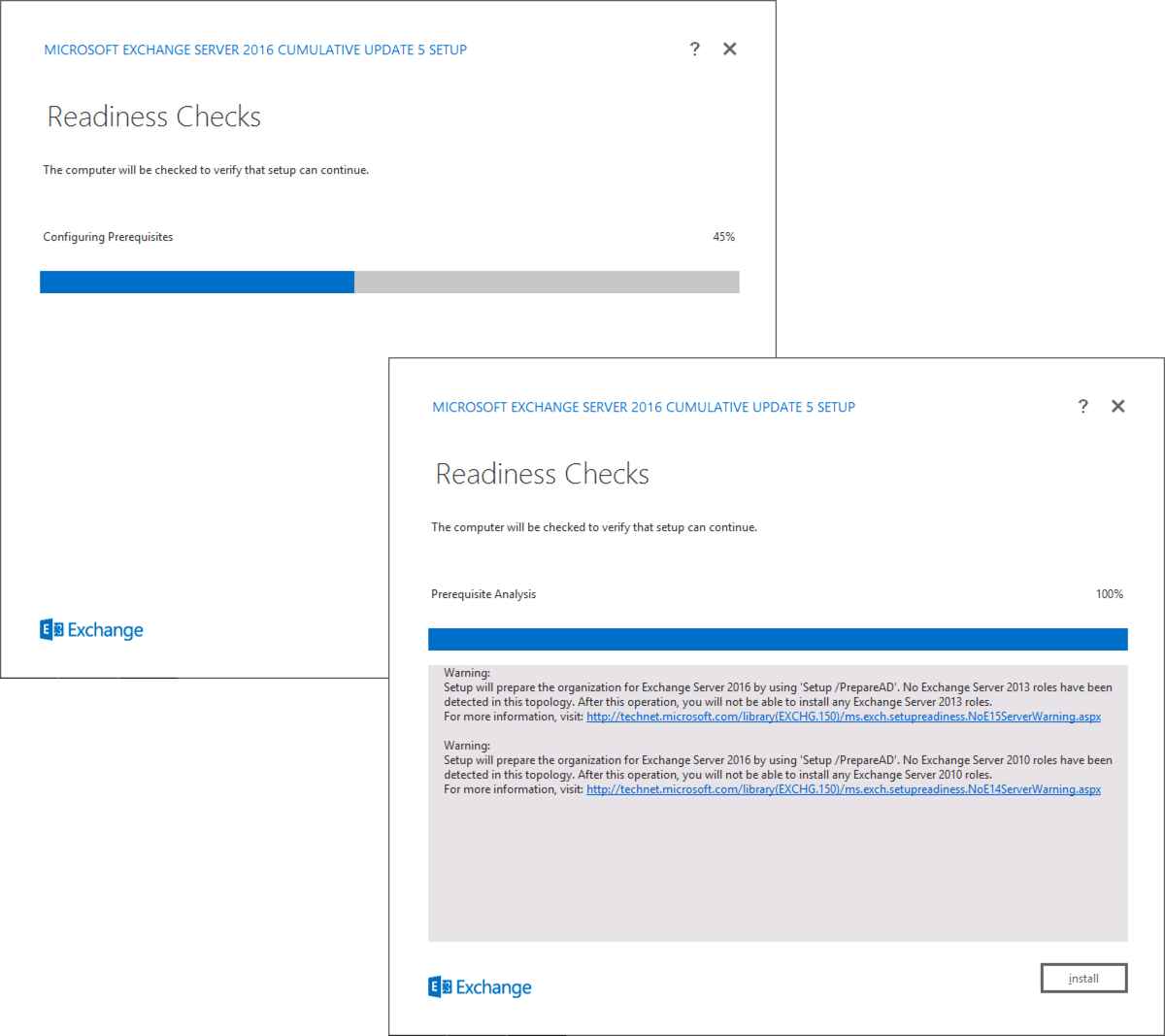

Exchange now does a quick check to make sure it's happy to progress, you will always get a couple of warnings, if it complains about anything else rectify it and click 'recheck', once you are happy click Next.

Exchange 2016 Readiness Checks

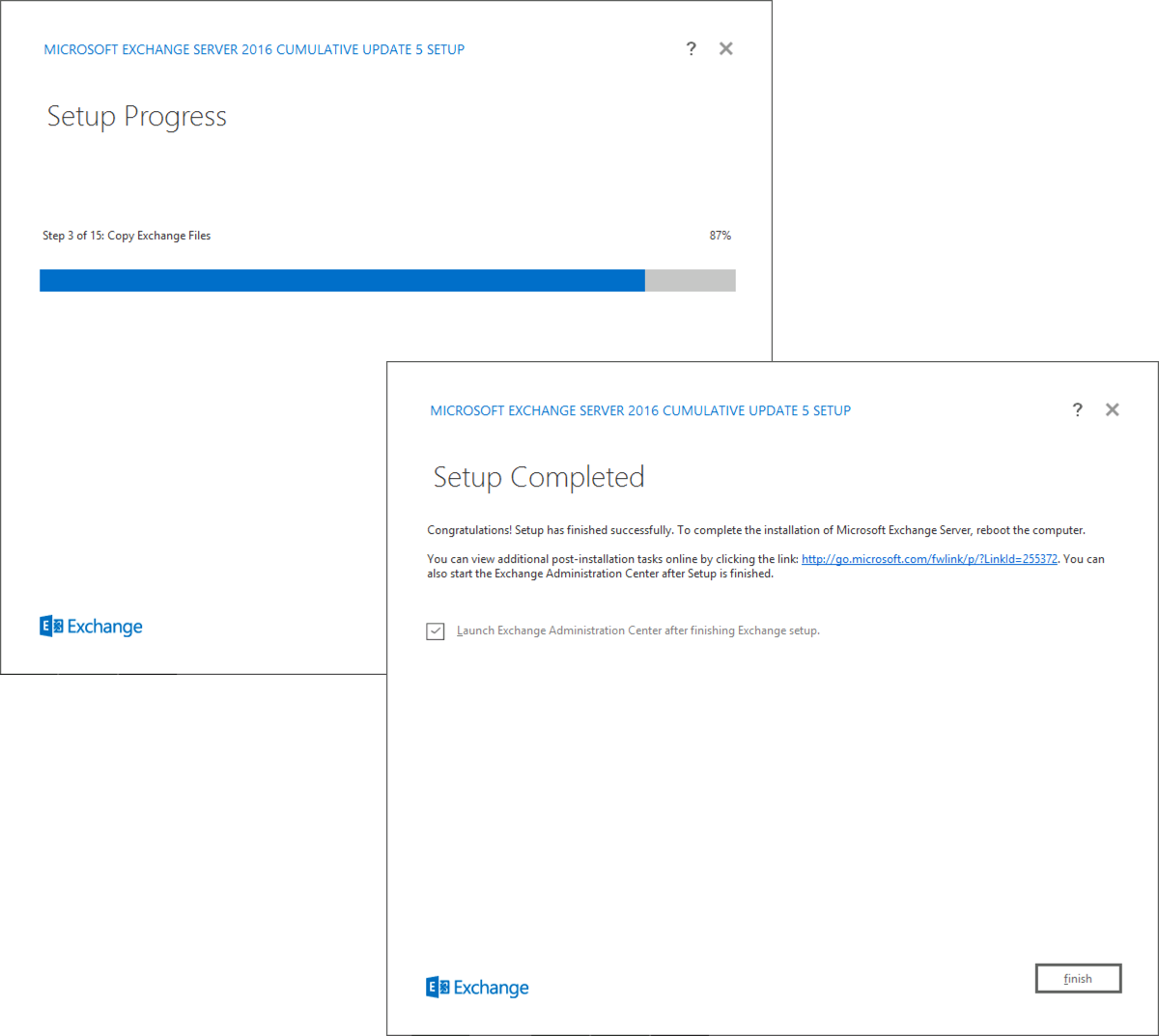

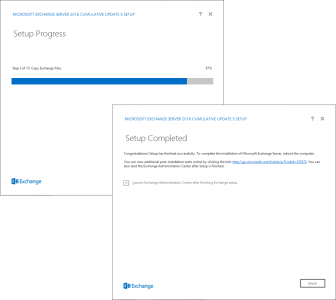

Setup progress takes ages! Seriously go to lunch at this point > Next > Once completed Ive ticked the box to open the Exchange Admin Center, but nearly overtime Ive done this it fails. Your best bet is to reboot the server, go and have a coffee then come back and open a browser window and navigate to https://{server-FQDN}/ecp

Exchange 2016 setup and deploy

In Part 3, we will look at post install tasks.
