Exchange – ‘Not all the required authentication methods were found’

Advertisement

KB ID 0001180 Dtd 04/05/16

Problem

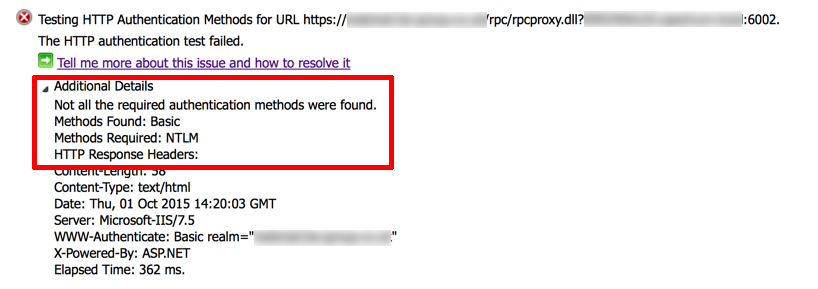

I had to visit a client who had recently gone through an Exchange migration, now his external mail clients were having a nightmare staying connected to Outlook Anywhere. I ran the Exchange connectivity tester and got this;

Not All the required Authentication methods were found

Additional details  Not all the required authentication methods were  found  Methods Found: Basic  Methods Required: NTLM



Solution

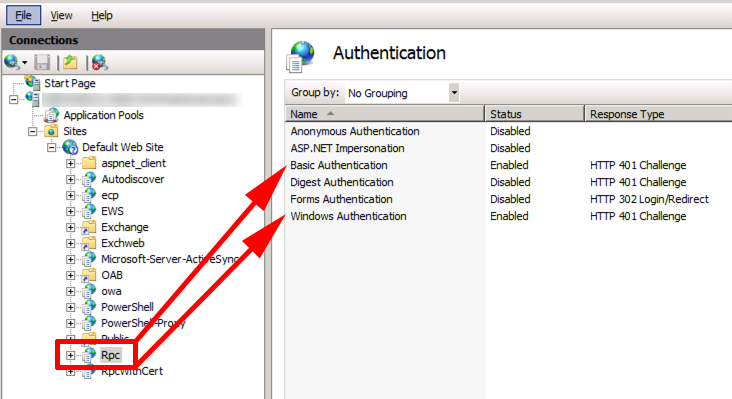

Looks like an open and shut case, someone forgot to enable Windows Authentication on the 'rpc' virtual directory in Exchange, and when I looked, it wasn't so I enabled it, like so;

RPC Directory Permissions

Now I was feeling smug, and enjoying a coffee before I left site, when it went off again? As it happens, not only do you need to set it correctly in IIS, but if someone has set it incorrectly in Exchange, then Exchange wins! As you can see by my query below;

[PS] C:\Windows\system32>Get-OutlookAnywhere


RunspaceId                      : a268959b-a2c9-435a-883e-97acef3ec828
ServerName                      : PNLMAIL03
SSLOffloading                   : False
ExternalHostname                : webmail.petenetlive.co.uk
ClientAuthenticationMethod      : Ntlm
IISAuthenticationMethods        : {Basic} << OOPS! :(
XropUrl                         :
MetabasePath                    : IIS://PNLMAIL03.PNL.local/W3SVC/1/ROOT/Rpc
Path                            : C:\Windows\System32\RpcProxy
ExtendedProtectionTokenChecking : None
ExtendedProtectionFlags         : {}
ExtendedProtectionSPNList       : {}
Server                          : PNLMAIL03
AdminDisplayName                :
ExchangeVersion                 : 0.10 (14.0.100.0)
Name                            : PNLMAIL03
DistinguishedName               : CN=PNLMAIL03,CN=HTTP,CN=Protocols,CN=PNLMAIL03,CN=Servers,CN=Exchange Administrative Group (FYDIBOHF23SPDLT),CN=Administrative Groups,CN=PeteNetLive,CN=Microsoft Exchange,CN=Services,CN=Configuration,DC=PNL,DC=local
Identity                        : PNLMAIL03\PNLMAIL03
Guid                            : 3403795b-af71-4687-ba81-da4c876ed7bc
ObjectCategory                  : PNL.local/Configuration/Schema/ms-Exch-Rpc-Http-Virtual-Directory
ObjectClass                     : {top, msExchVirtualDirectory, msExchRpcHttpVirtualDirectory}
WhenChanged                     : 01/10/2015 13:34:26
WhenCreated                     : 14/06/2013 09:27:03
WhenChangedUTC                  : 01/10/2015 12:34:26
WhenCreatedUTC                  : 14/06/2013 08:27:03
OrganizationId                  :
OriginatingServer               : PNLDC01.PNL.local
IsValid                         : True

RunspaceId                      : a268959b-a2c9-435a-883e-97acef3ec828
ServerName                      : PNLMAIL02
SSLOffloading                   : False
ExternalHostname                : webmail.petenetlive.co.uk
ClientAuthenticationMethod      : Ntlm
IISAuthenticationMethods        : {Basic}
XropUrl                         :
MetabasePath                    : IIS://PNLMAIL02.PNL.local/W3SVC/1/ROOT/Rpc
Path                            : C:\Windows\System32\RpcProxy
ExtendedProtectionTokenChecking : None
ExtendedProtectionFlags         : {}
ExtendedProtectionSPNList       : {}
Server                          : PNLMAIL02
AdminDisplayName                :
ExchangeVersion                 : 0.10 (14.0.100.0)
Name                            : PNLMAIL02
DistinguishedName               : CN=PNLMAIL02,CN=HTTP,CN=Protocols,CN=PNLMAIL02,CN=Servers,CN=Exchange Administrative Group (FYDIBOHF23SPDLT),CN=Administrative Groups,CN=PeteNetLive,CN=Microsoft Exchange,CN=Services,CN=Configuration,DC=PNL,DC=local
Identity                        : PNLMAIL02\PNLMAIL02
Guid                            : 40ea303b-9c68-47ab-84fd-362c07f0a2db
ObjectCategory                  : PNL.local/Configuration/Schema/ms-Exch-Rpc-Http-Virtual-Directory
ObjectClass                     : {top, msExchVirtualDirectory, msExchRpcHttpVirtualDirectory}
WhenChanged                     : 01/10/2015 13:34:37
WhenCreated                     : 14/06/2013 09:26:49
WhenChangedUTC                  : 01/10/2015 12:34:37
WhenCreatedUTC                  : 14/06/2013 08:26:49
OrganizationId                  :
OriginatingServer               : PNLDC01.PNL.local
IsValid                         : True

Well that explains the error! To fix that;

[PS] C:\Windows\system32>get-outlookanywhere | set-outlookanywhere -iisauthentication ntlm, basic

Now let's check again.

[PS] C:\Windows\system32>Get-OutlookAnywhere


RunspaceId                      : a268959b-a2c9-435a-883e-97acef3ec828
ServerName                      : PNLMAIL03
SSLOffloading                   : False
ExternalHostname                : webmail.petenetlive.co.uk
ClientAuthenticationMethod      : Ntlm
IISAuthenticationMethods        : {Basic, Ntlm} << BOOM :)
XropUrl                         :
MetabasePath                    : IIS://PNLMAIL03.PNL.local/W3SVC/1/ROOT/Rpc
Path                            : C:\Windows\System32\RpcProxy
ExtendedProtectionTokenChecking : None
ExtendedProtectionFlags         : {}
ExtendedProtectionSPNList       : {}
Server                          : PNLMAIL03
AdminDisplayName                :
ExchangeVersion                 : 0.10 (14.0.100.0)
Name                            : PNLMAIL03
DistinguishedName               : CN=PNLMAIL03,CN=HTTP,CN=Protocols,CN=PNLMAIL03,CN=Servers,CN=Exchange Administrative Group (FYDIBOHF23SPDLT),CN=Administrative Groups,CN=PeteNetLive,CN=Microsoft Exchange,CN=Services,CN=Configuration,DC=PNL,DC=local
Identity                        : PNLMAIL03\PNLMAIL03
Guid                            : 3403795b-af71-4687-ba81-da4c876ed7bc
ObjectCategory                  : PNL.local/Configuration/Schema/ms-Exch-Rpc-Http-Virtual-Directory
ObjectClass                     : {top, msExchVirtualDirectory, msExchRpcHttpVirtualDirectory}
WhenChanged                     : 02/10/2015 13:13:55
WhenCreated                     : 14/06/2013 09:27:03
WhenChangedUTC                  : 02/10/2015 12:13:55
WhenCreatedUTC                  : 14/06/2013 08:27:03
OrganizationId                  :
OriginatingServer               : PNLDC01.PNL.local
IsValid                         : True

RunspaceId                      : a268959b-a2c9-435a-883e-97acef3ec828
ServerName                      : PNLMAIL02
SSLOffloading                   : False
ExternalHostname                : webmail.petenetlive.co.uk
ClientAuthenticationMethod      : Ntlm
IISAuthenticationMethods        : {Basic, Ntlm}
XropUrl                         :
MetabasePath                    : IIS://PNLMAIL02.PNL.local/W3SVC/1/ROOT/Rpc
Path                            : C:\Windows\System32\RpcProxy
ExtendedProtectionTokenChecking : None
ExtendedProtectionFlags         : {}
ExtendedProtectionSPNList       : {}
Server                          : PNLMAIL02
AdminDisplayName                :
ExchangeVersion                 : 0.10 (14.0.100.0)
Name                            : PNLMAIL02
DistinguishedName               : CN=PNLMAIL02,CN=HTTP,CN=Protocols,CN=PNLMAIL02,CN=Servers,CN=Exchange Administrative Group (FYDIBOHF23SPDLT),CN=Administrative Groups,CN=PeteNetLive,CN=Microsoft Exchange,CN=Services,CN=Configuration,DC=PNL,DC=local
Identity                        : PNLMAIL02\PNLMAIL02
Guid                            : 40ea303b-9c68-47ab-84fd-362c07f0a2db
ObjectCategory                  : PNL.local/Configuration/Schema/ms-Exch-Rpc-Http-Virtual-Directory
ObjectClass                     : {top, msExchVirtualDirectory, msExchRpcHttpVirtualDirectory}
WhenChanged                     : 02/10/2015 13:13:58
WhenCreated                     : 14/06/2013 09:26:49
WhenChangedUTC                  : 02/10/2015 12:13:58
WhenCreatedUTC                  : 14/06/2013 08:26:49
OrganizationId                  :
OriginatingServer               : PNLDC01.PNL.local
IsValid                         : True



Related Articles, References, Credits, or External Links

NA

Author: PeteLong
