Window Server – Configuring NIC Teaming

KB ID 0000786

Problem

One great new feature of Server is bult in network ‘Teaming’. To do this normally takes some third party software, either form the server vendor (HP Teaming) or from the NIC manufacturer.

It utilises a new Windows feature called LBFO, this lets you both aggregate links, and have links available in the event of failover.

Note: NIC Teaming only supports up to 32 network cards.

Solution

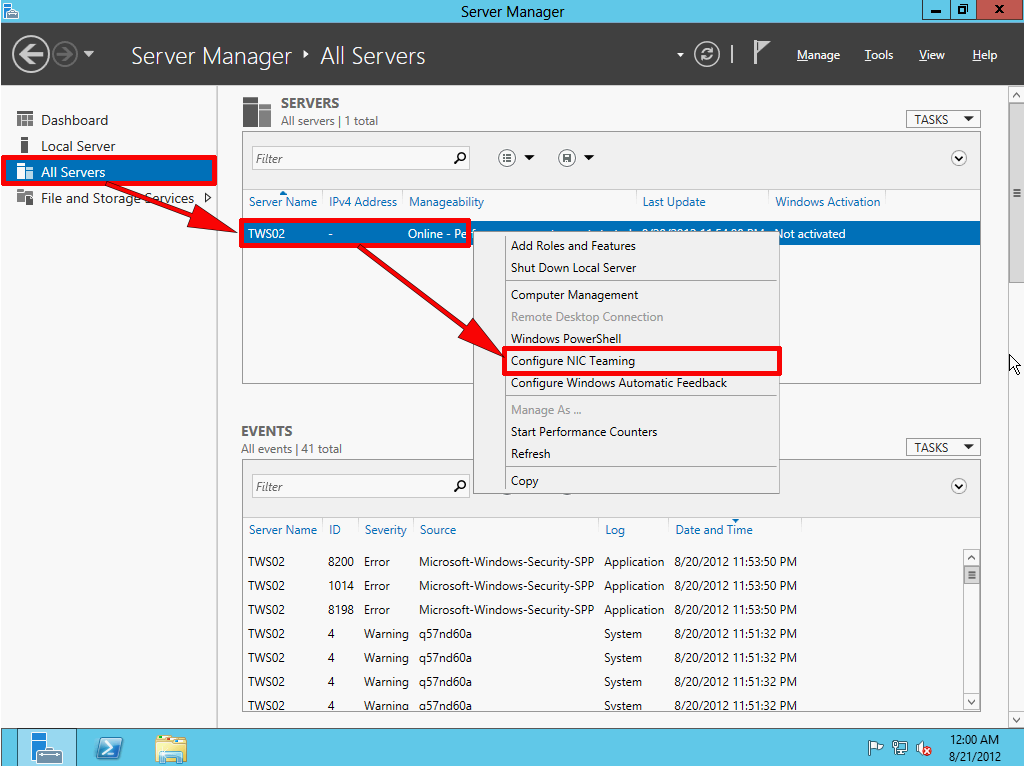

1. Launch Server manager > All Servers > Select the server you ant to create a team on > Right Click > Configure NIC Teaming.

Server Manager NIC Teaming

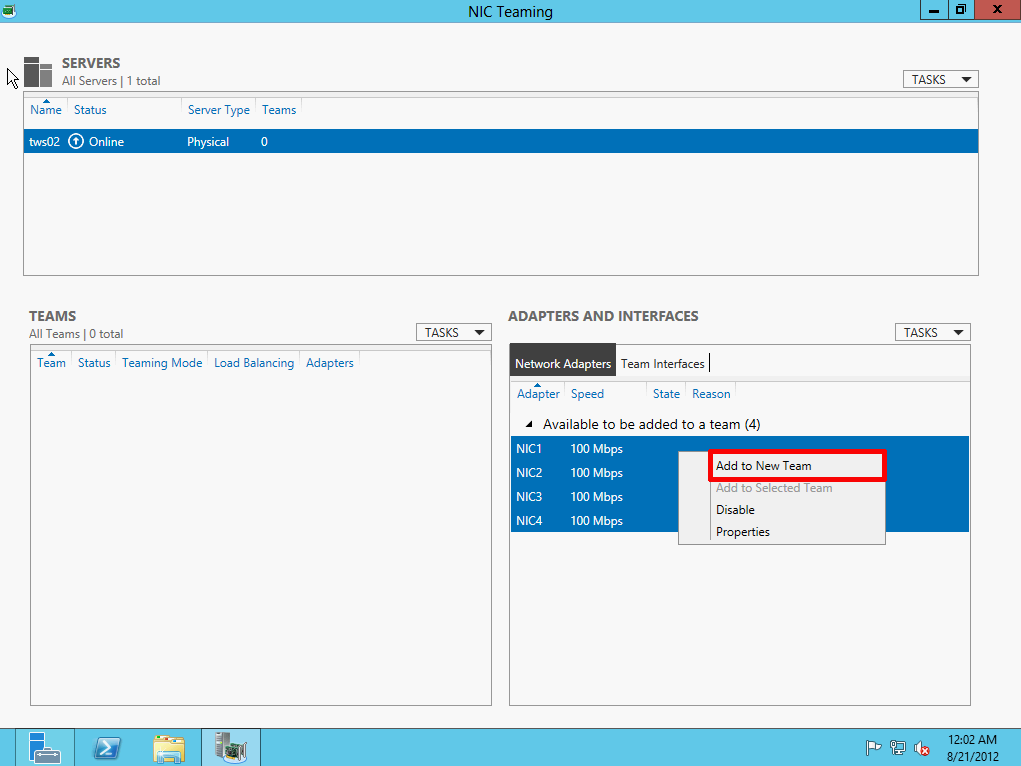

2. Select the NICs you want to add to the team > Right Click > Add to New Team.

Add NICs to TEAM

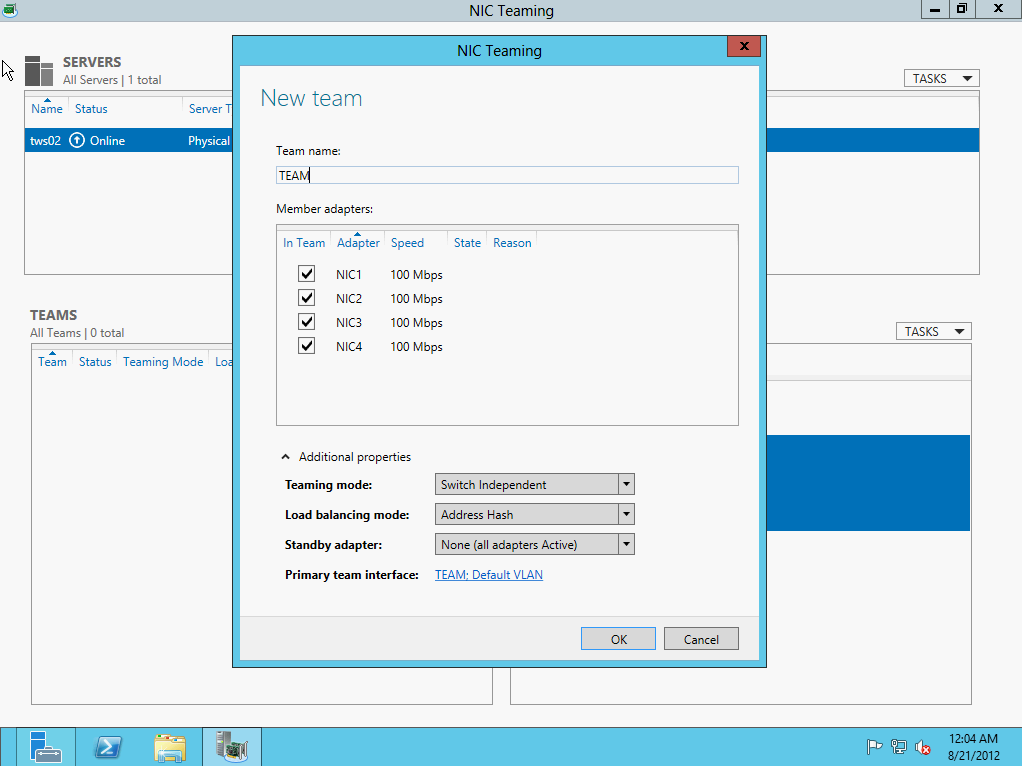

3. Give the Team a name > OK.

Note: By default ‘Switch independent’ will be selected, this is probably what you want (see below) > OK.

Configure Teaming 2012

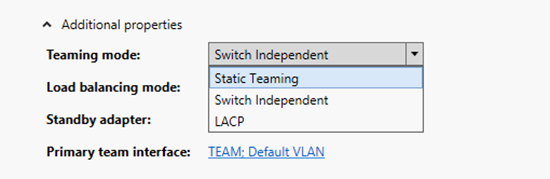

Windows Server 2012 NIC Teaming Modes

Static Teaming: Requires configuration on the switch, which must be configured for IEEE 803.3ad (draft v1).

Switch Independent: Generally requires no switch configuration and can be connected to multiple switches.

LACP: Requires configuration on the switch, which must be configured for IEEE 802.1ax, and support LACP. Note: On a Cisco Catalyst this would be a port-channel, on an HP Networking switch this would be called an LACP trunk.

NIC Team Types

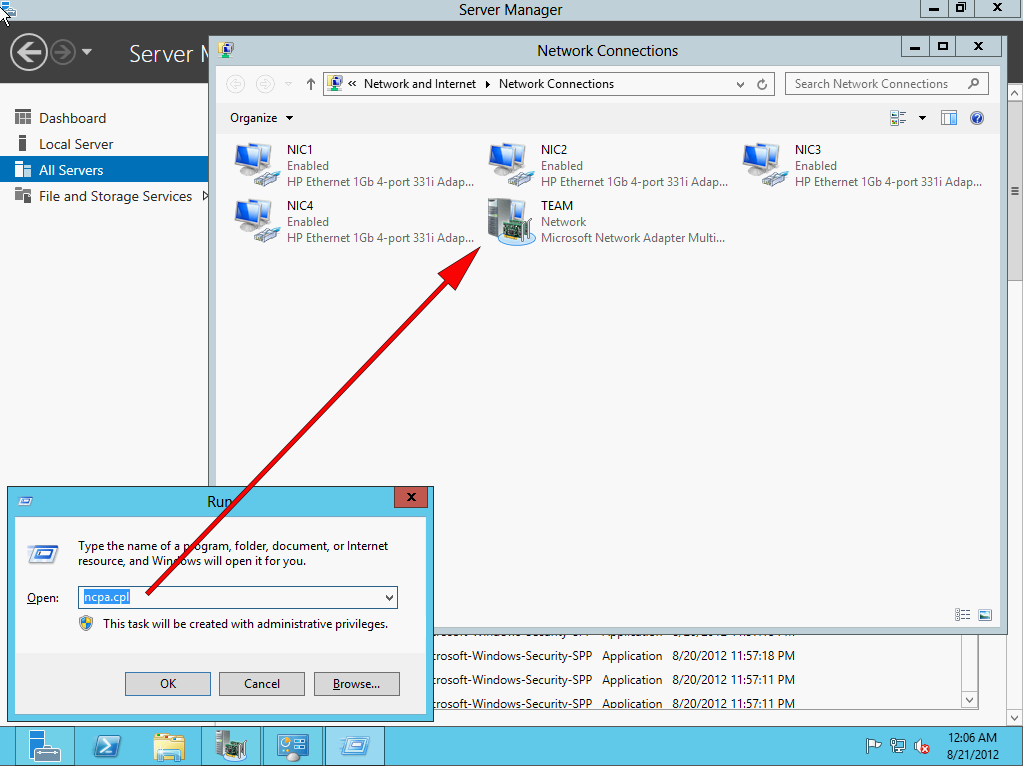

4. Now if you look under ‘Network Connections’ you will see a new one with the name you created.

Aggregate NICs 2012

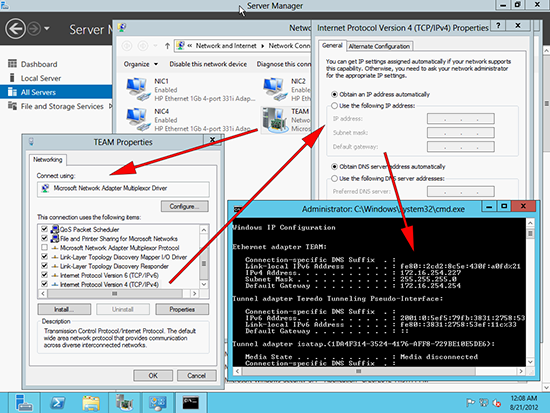

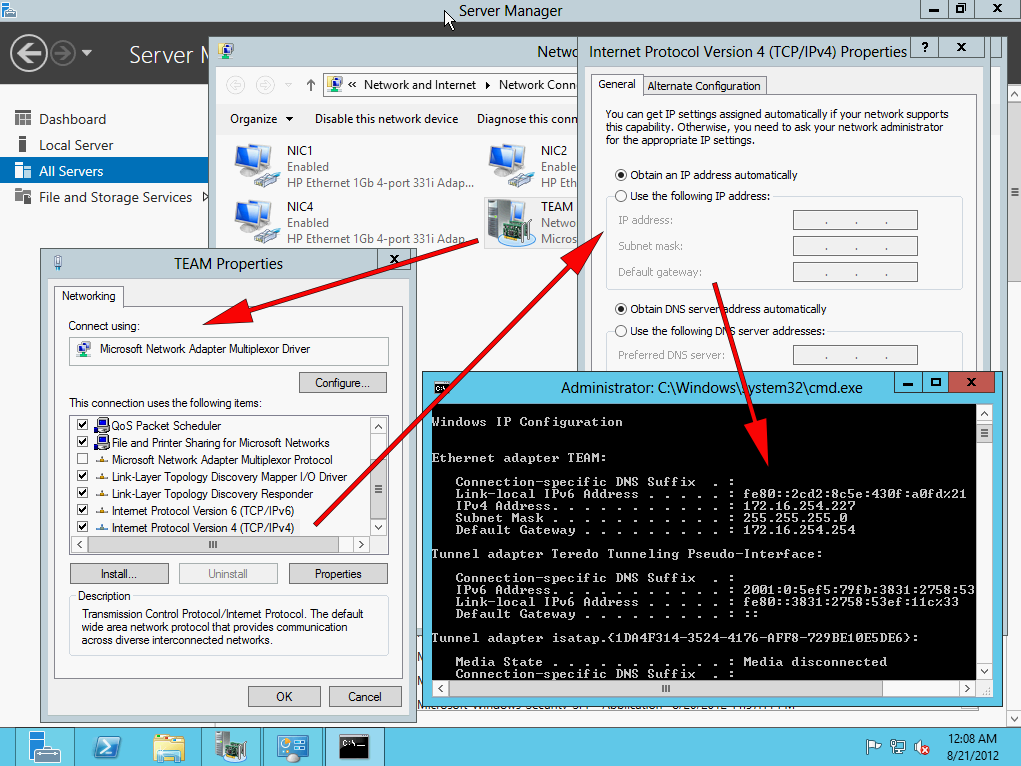

5. Configure this new Teamed NIC, and simply treat it as a single network card.

Team IP address

Configure Teaming via PowerShell

To do the same as we did above use the following command;

New-NetLbfoTeam -Name TEAM -TeamMembers NIC1,NIC2,NIC3,NIC4 -TeamingMode SwitchIndependent
