KB ID 0001240 Dtd 20/09/16

Problem

I see this get asked in forums A LOT, so I though I'd get around to getting it written up. If you have an existing VPN to a remote site and then need to add another network how do you do it?

Well that depends on where the new network is, and how it's entering the firewall, these diagrams can be either way round, but the new network will either be coming into the ASA on the same interface (i.e you've spun up a new network for phones, or a new department etc.) Or the traffic will be coming into the ASA through a different interface, (like a DMZ, or partner network).

Adding Networks to Existing VPNs

Note: The process for adding the new network is the same for both, BUT depending on which interface the new traffic is coming in on, this will change your NAT command.

Solution

Option A: New Network is on a Different Interface

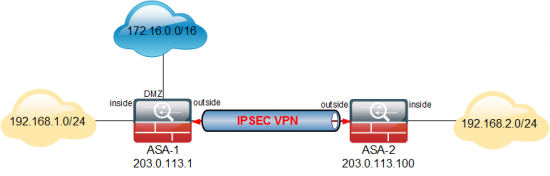

Let's flesh our diagram out a bit, to make things easier to explain;

Add a DMZ to VPN

Tasks on ASA-1

  • Locate the ACL that's handling the site to site VPN and add the new network to it.
  • Locate the NAT Exemption for the site to site VPN and add a new one for the new interface.

Locate the ACL that's handling the VPN: This will be declared in the crypto map that points to the other ASA (203.0.113.100)

ASA-1# show run crypto map
crypto map PNL-MAP 1 match address VPN-BACKUP-TRAFFIC
crypto map PNL-MAP 1 set pfs
crypto map PNL-MAP 1 set peer 123.123.123.123
crypto map PNL-MAP 1 set ikev1 transform-set ESP-AES-128-SHA
crypto map PNL-MAP 1 set security-association lifetime kilobytes unlimited
crypto map PNL-MAP 2 match address VPN-INTERESTING-TRAFFIC
crypto map PNL-MAP 2 set pfs
crypto map PNL-MAP 2 set peer 203.0.113.100
crypto map PNL-MAP 2 set ikev1 transform-set VPN-TRANSFORM
crypto map PNL-MAP interface outside

From the output above we can see that the ACL for this VPN is called VPN-INTERESTING-TRAFFIC, yours, probably, will have a less friendly name. Let's see what that's doing.

ASA-1# show run access-list VPN-INTERESTING-TRAFFIC
access-list VPN-INTERESTING-TRAFFIC extended permit ip object Obj-Local-LAN object Obj-Remote-LAN

Again I've got nice neat groups, yours may simply have the networks listed, let's check those objects marry up with the subnets we expect.

ASA-1# show run object id Obj-Local-LAN
object network Obj-Local-LAN
 subnet 192.168.1.0 255.255.255.0
ASA-1# show run object id Obj-Remote-LAN
object network Obj-Remote-LAN
 subnet 192.168.2.0 255.255.255.0

So now  create an object for the new network and add it to the existing ACL.

ASA-1# configure terminal
ASA-1(config)# object network Obj-DMZ-LAN
ASA-1(config-network-object)# subnet 172.16.0.0 255.255.0.0
ASA-1(config-network-object)# access-list VPN-INTERESTING-TRAFFIC extended permit ip object Obj-DMZ-LAN object Obj-Remote-LAN

Now just the NAT exception to do, let's find the NAT exemption;

ASA-1(config)# show run nat
nat (inside,outside) source static any any destination static Obj-ANYCONNECT-SUBNET Obj-ANYCONNECT-SUBNET no-proxy-arp route-lookup
nat (inside,outside) source static Obj-Local-LAN Obj-Local-LAN destination static Obj-Remote-LAN Obj-Remote-LAN no-proxy-arp route-lookup
!
object network Server
 nat (inside,outside) static interface service tcp 3389 3389
!
object network OBJ-ANY
 nat (inside,outside) dynamic interface

Now as this traffic is actually coming though the DMZ interface (not the inside interface) we add our new object in and exempt it from NAT like so

ASA-1(config)# nat (DMZ,outside) source static Obj-DMZ-LAN Obj-DMZ-LAN destination static Obj-Remote-LAN Obj-Remote-LAN no-proxy-arp route-lookup

Tasks on ASA-2

  • Locate the ACL that's handling the site to site VPN and add the new network to it.
  • Locate the NAT Exemption for the site to site VPN  and add the new network to it.

Locate the ACL that's handling the VPN: This will be declared in the crypto map that points to the other ASA (203.0.113.1)

ASA-2# show run crypto map
crypto map outside_map 1 match address outside_cryptomap_1
crypto map outside_map 1 set pfs
crypto map outside_map 1 set peer 203.0.113.1
crypto map outside_map 1 set ikev1 transform-set VPN-TRANSFORM
crypto map outside_map interface outside

From the output above we can see that the ACL for this VPN is called outside_cryptomap_1 . Let's see what that's doing.

ASA-2# show run access-list outside_cryptomap_1
access-list outside_cryptomap_1 extended permit ip object Obj-Local-LAN object Obj-Remote-LAN

I've got nice neat groups, yours may simply have the networks listed, let's check those objects mary up with the subnets we expect.

ASA-2# show run object id Obj-Local-LAN
object network Obj-Local-LAN
 subnet 192.168.2.0 255.255.255.0
ASA-2# show run object id Obj-Remote-LAN
object network Obj-Remote-LAN
 subnet 192.168.1.0 255.255.255.0

So now  create an object for the new network and add it to the existing AC.L

ASA-2# configure terminal
ASA-2(config)# object network Obj-DMZ-LAN
ASA-2(config-network-object)# subnet 172.16.0.0 255.255.0.0
ASA-2(config-network-object)# access-list outside_cryptomap_1 extended permit ip object Obj-Local-LAN object Obj-DMZ-LAN

Now just the NAT exception to do, let's find the NAT exemption;

ASA-2(config)# show run nat
nat (inside,outside) source static Obj-Local-LAN Obj-Local-LAN destination static Obj-Remote-LAN Obj-Remote-LAN no-proxy-arp route-lookup
!
object network Obj-ANY
 nat (inside,outside) dynamic interface

Now simply add the new object we created above as an extra NAT exemption.

ASA-1(config)# nat (inside,outside) source static Obj-Local-LAN Obj-Local-LAN destination static Obj-DMZ-LAN Obj-DMZ-LAN no-proxy-arp route-lookup

DON'T FORGET to save the config on both firewalls with a 'write mem' command!



Option B: New Network is on the Same Interface

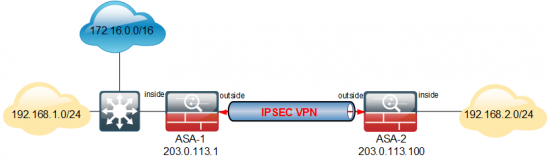

Let's flesh our diagram out a bit, to make thinks easier to explain;

 Add another Subnet to VPN

Tasks on ASA-1

  • Locate the ACL that's handling the site to site VPN and add the new network to it.
  • Locate the NAT Exemption for the site to site VPN and add the new network to it.

Locate the ACL that's handling the VPN: This will be declared in the crypto map that points to the other ASA (203.0.113.100)

ASA-1# show run crypto map
crypto map PNL-MAP 1 match address VPN-BACKUP-TRAFFIC
crypto map PNL-MAP 1 set pfs
crypto map PNL-MAP 1 set peer 123.123.123.123
crypto map PNL-MAP 1 set ikev1 transform-set ESP-AES-128-SHA
crypto map PNL-MAP 1 set security-association lifetime kilobytes unlimited
crypto map PNL-MAP 2 match address VPN-INTERESTING-TRAFFIC
crypto map PNL-MAP 2 set pfs
crypto map PNL-MAP 2 set peer 203.0.113.100
crypto map PNL-MAP 2 set ikev1 transform-set VPN-TRANSFORM
crypto map PNL-MAP interface outside

From the output above we can see that the ACL for this VPN is called VPN-INTERESTING-TRAFFIC, yours ,probably, will have a less friendly name. Let's see what that's doing.

ASA-1# show run access-list VPN-INTERESTING-TRAFFIC
access-list VPN-INTERESTING-TRAFFIC extended permit ip object Obj-Local-LAN object Obj-Remote-LAN

Again I've got nice neat groups, yours may simply have the networks listed, let's check those objects mary up with the subnets we expect.

ASA-1# show run object id Obj-Local-LAN
object network Obj-Local-LAN
 subnet 192.168.1.0 255.255.255.0
ASA-1# show run object id Obj-Remote-LAN
object network Obj-Remote-LAN
 subnet 192.168.2.0 255.255.255.0

So now  create an object for the new network and add it to the existing ACL

ASA-1# configure terminal
ASA-1(config)# object network Obj-Local-LAN-2
ASA-1(config-network-object)# subnet 172.16.0.0 255.255.0.0
ASA-1(config-network-object)# access-list VPN-INTERESTING-TRAFFIC extended permit ip object Obj-Local-LAN-2 object Obj-Remote-LAN

Now just the NAT exception to do, let's find the NAT exemption;

ASA-1(config)# show run nat
nat (inside,outside) source static any any destination static Obj-ANYCONNECT-SUBNET Obj-ANYCONNECT-SUBNET no-proxy-arp route-lookup
nat (inside,outside) source static Obj-Local-LAN Obj-Local-LAN destination static Obj-Remote-LAN Obj-Remote-LAN no-proxy-arp route-lookup
!
object network Server
 nat (inside,outside) static interface service tcp 3389 3389
!
object network OBJ-ANY
 nat (inside,outside) dynamic interface

Now add the new subnet in as an additional NAT exemption.

ASA-1(config)# nat (inside,outside) source static Obj-Local-LAN-2 Obj-Local-LAN-2 destination static Obj-Remote-LAN Obj-Remote-LAN no-proxy-arp route-lookup

Tasks on ASA-2

  • Locate the ACL that's handling the site to site VPN and add the new network to it.
  • Locate the NAT Exemption for the site to site VPN  and add the new network to it.

Locate the ACL that's handling the VPN: This will be declared in the crypto map that points to the other ASA (203.0.113.1)

ASA-2# show run crypto map
crypto map outside_map 1 match address outside_cryptomap_1
crypto map outside_map 1 set pfs
crypto map outside_map 1 set peer 203.0.113.1
crypto map outside_map 1 set ikev1 transform-set VPN-TRANSFORM
crypto map outside_map interface outside

From the output above we can see that the ACL for this VPN is called outside_cryptomap_1 . Let's see what thats doing.

ASA-2# show run access-list outside_cryptomap_1
access-list outside_cryptomap_1 extended permit ip object Obj-Local-LAN object Obj-Remote-LAN

I've got nice neat groups, yours may simply have the networks listed, let's check those objects marry up with the subnets we expect.

ASA-2# show run object id Obj-Local-LAN
object network Obj-Local-LAN
 subnet 192.168.2.0 255.255.255.0
ASA-2# show run object id Obj-Remote-LAN
object network Obj-Remote-LAN
 subnet 192.168.1.0 255.255.255.0

So now  create an object for the new network and add it to the existing ACL

ASA-2# configure terminal
ASA-2(config)# object network Obj-Remote-LAN-2
ASA-2(config-network-object)# subnet 172.16.0.0 255.255.0.0
ASA-2(config-network-object)# access-list outside_cryptomap_1 extended permit ip object Obj-Local-LAN object Obj-Remote-LAN-2

Now just the NAT exception to do, lets find the NAT exemption;

ASA-2(config)# show run nat
nat (inside,outside) source static Obj-Local-LAN Obj-Local-LAN destination static Obj-Remote-LAN Obj-Remote-LAN no-proxy-arp route-lookup
!
object network Obj-ANY
 nat (inside,outside) dynamic interface

Now simply add the new object we created above as an extra NAT exemption.

ASA-2(config)# nat (inside,outside) source static Obj-Local-LAN Obj-Local-LAN destination static Obj-Remote-LAN-2 Obj-Remote-LAN-2 no-proxy-arp route-lookup

DON'T FORGET to save the config on both firewalls with a 'write mem' command!
