Public Folder Migration Exchange 2003 to 2010


KB ID 0000426 Dtd 31/03/11


I've already written at length about migrating from Exchange 2003 to 2010, I was doing a migration this week and migrating the public folders was proving to be a pain.

If you have multiple public folders within public folders then setting up replication can be a nightmare, as the replication settings don't get passed down to the child object.

Normally you could use PFDAdmin and this would do it for you, or use the Exchange ExFolder tool, or even the powershell scripts included with Exchange 2010 (like AddReplicatoPFRecursive.ps1). But sadly all these failed for me today.

To use the Exchange 2010 Scripts click here.

In the end, with the aid of third line support at Microsoft, it was fixed using a feature of Exchange 2003 that I NEVER KNEW was there :)

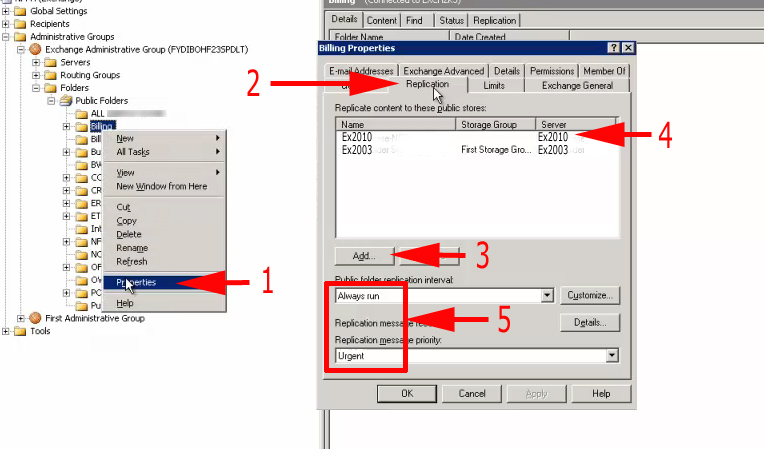

1. The bad news is you still have to add the new Exchange 2010 server as a replica on the top level folder. (Right click > Properties > Replication Tab > Add > Add in the new server > Set the interval to always run > priority to urgent (unless you have a LOT! then choose Normal) > Apply.

migrate PF

Update: Eagle eyed visitor Brian Morphey, mailed me to point out that in my diagram all the folders are under the Exchange 2010 Administrative group, How did they get there? You need to use Exchange system Manager to create a public folder group in the new administrative group then simply DRAG the public folder group from the old admin group to the new one.

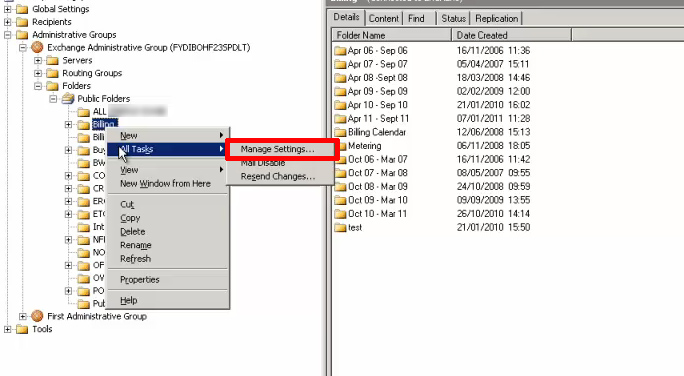

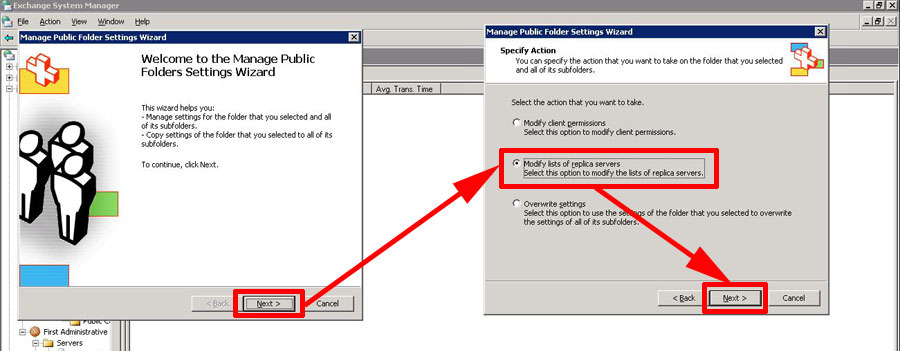

2. Right click the folder again > All Tasks > Manage Settings.

Public Folders 2003 to 2010

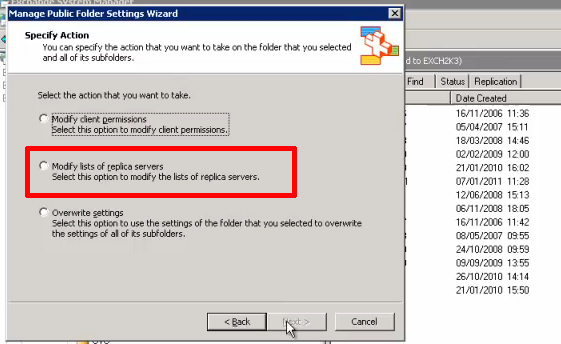

3. Select "Modify lists of replica servers" > Next.

2003 Public Folder Migration

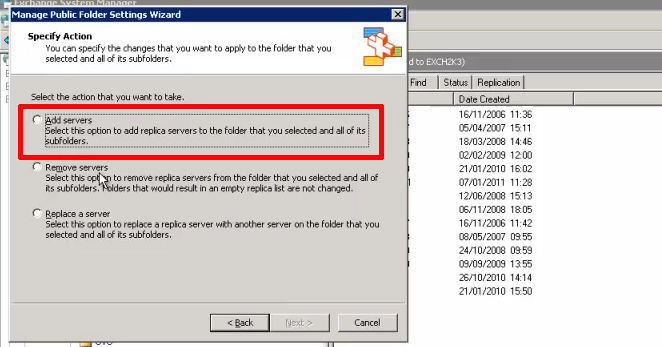

4. Add servers > Next.

Add Replication Partner

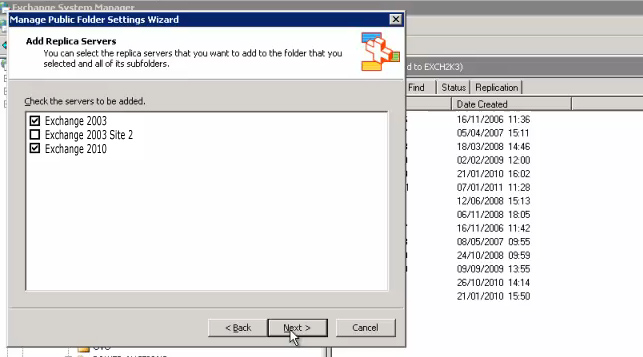

5. Add in BOTH the 2003 server AND the 2010 server > Next.

Exchange 2010 public folder replication

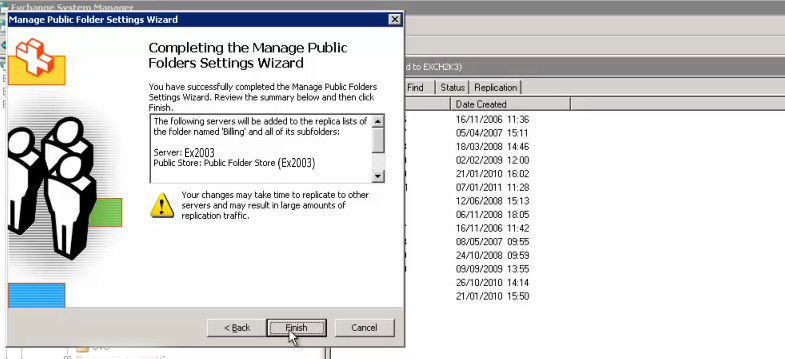

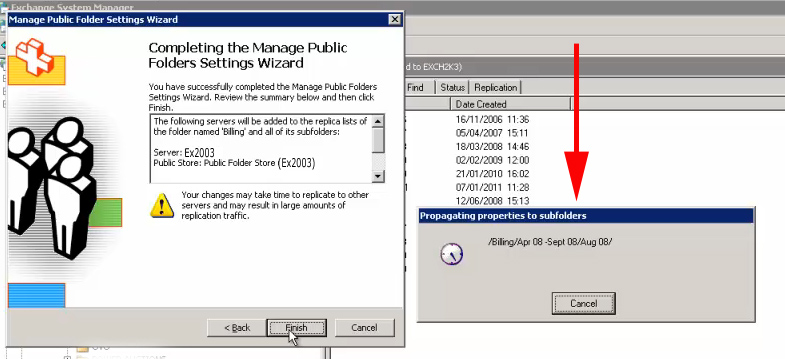

6. Finish.

manage public folders wizard

7. It will now run through all the sub folders and apply the same replication settings on all of them, this can take a while depending on the number of folders.

move pf to exchange 2010

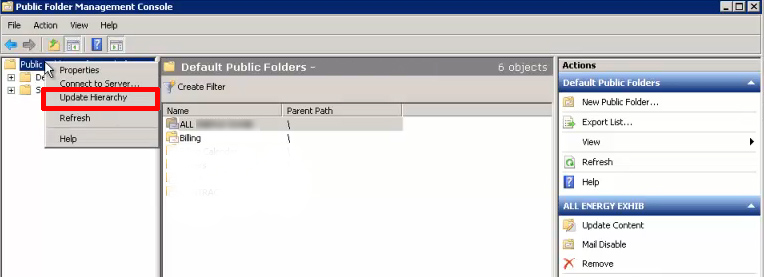

8. Go to the Exchange 2010 Server and open the Public Folder Management console, right click Public Folder {your server name} > Update Hierarchy.

PF Update Heirachy

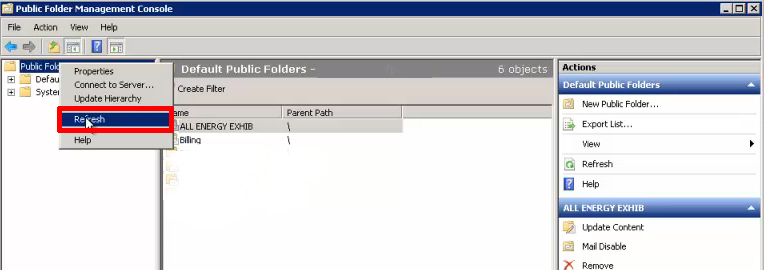

9. Repeat the above, but this time select "Refresh".

Push Public Folders

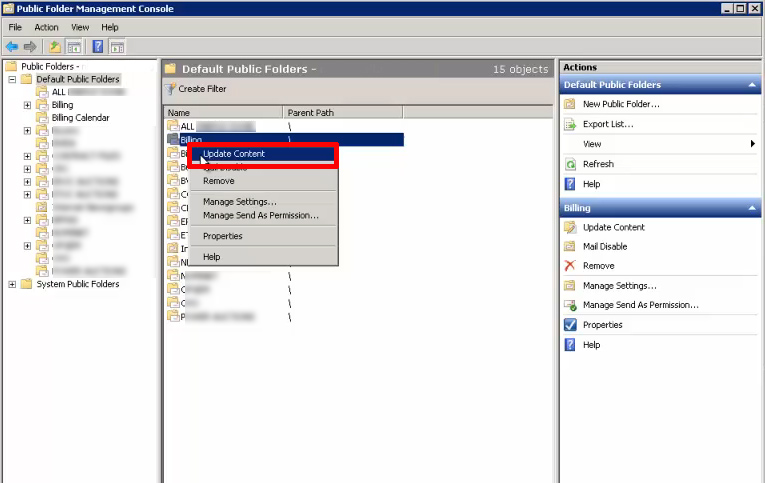

10. Finally to speed things along, you can right click each folder and select "Update Content".

Update Public Folder Content

11. Now wait! It can take a while till replication is complete.

Removing Public Folder Replicas

Once All the data has replicated across you can remove the 2003 replica by doing the reverse.

1. Right click the public folder > All Tasks > Manage Settings > Next > Modify List of replica servers > Next.

Remove PF Replica

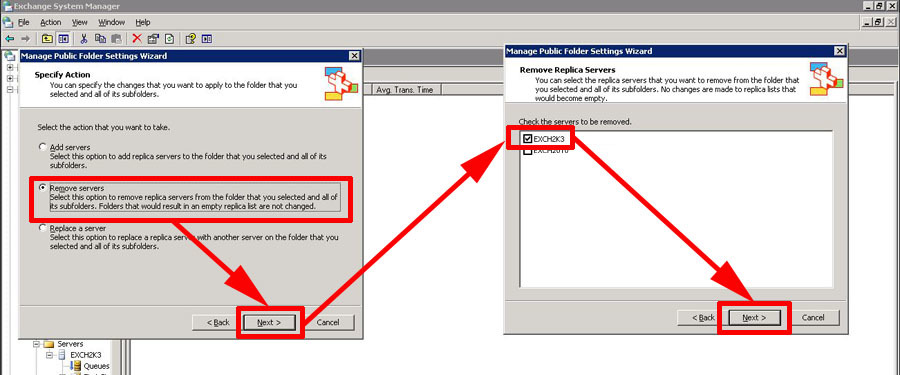

2. Remove servers> Next > Tick the server you want to REMOVE the replica from > Next.

Remove old public folder

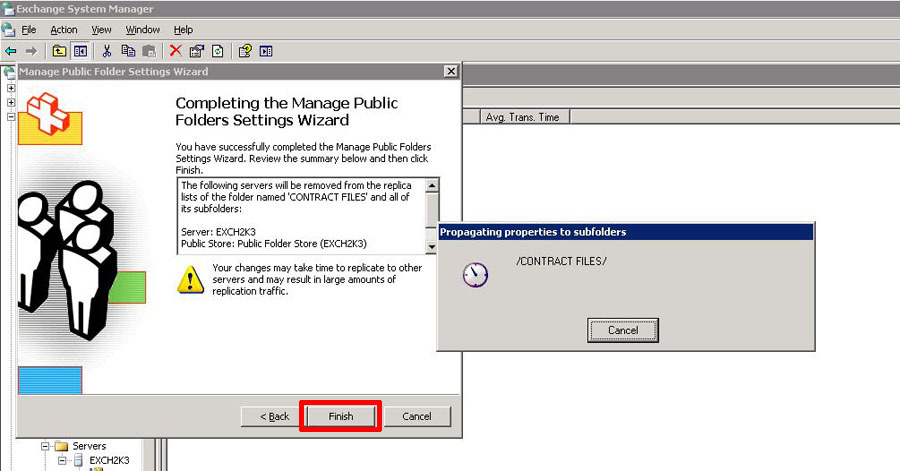

3. Finish > Depending on the amount of data it may take a while.

Manage public folder migration

Migrating Public Folders with Exchange 2010 Scripts

Step 1 Set up Public Folder Replication to Exchange 2010

On the Exchange 2010 Server open the Exchange Management Shell and execute the following three commands;

CD "C:Program FilesMicrosoftExchange ServerV14Scripts" .AddReplicaToPFRecursive.ps1 -TopPublicFolder "" -ServerToAdd "" Update-PublicFolderHierarchy -Server ""
Step 2 Once the Replication Has occurred Warning: Check that replication is complete before you do this! Check replication with a "Get-PublicFolderStatistics " command, once you are happy, run the following two commands;
CD "C:Program FilesMicrosoftExchange ServerV14Scripts" .MoveAllReplicas.ps1 -Server "" -NewServer ""

Related Articles, References, Credits, or External Links

Thanks to Brian Morphey for the feedback.
